Overview

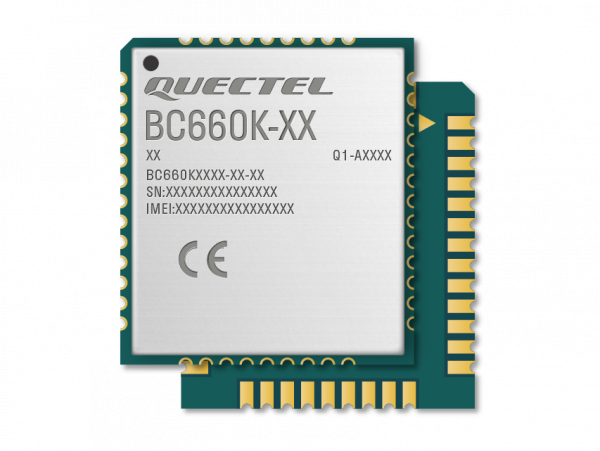

The BC660K-GL is a high-performance LTE Cat NB2 module which supports multiple frequency bands of B1/B2/B3/B4/B5/B8/B12/B13/B14/B17/B18/B19/B20/B25/B28/B66/B70/ B85 with extremely low power consum  tion. The module’s ultra-compact profile makes it a perfect choice for size-sensitive applications. Designed to be compatible with Quectel's GSM/GPRS M66 module and NB-IoT BC66 module in form and size, it provides a flexible and scalable platform for migrating from GSM/GPRS to NB-IoT networks.

The BC660K-GL uses surface-mount technology, which makes it an ideal solution for durable and rugged designs. The module’s small LCC package allows it to be easily embedded into space-constrained applications and to enjoy reliable connection with the applications. This kind of package suits large-scale manufacturing which has strict requirements on cost and efficiency.

Due to its ultra-compact profile, super-low power consumption and extended temperature range, the BC660K-GL is an excellent choice for a wide range of IoT applications, such as smart metering, bike sharing, smart parking, smart city, security and asset tracking, home appliances, agricultural and environmental monitoring. It can also provide a complete range of SMS and data transmission services to meet various user demands.

SUMMARY

  • Multi-band LTE Cat NB2 module
  • 17.7mm × 15.8mm × 2mm
  • 1.8g
  • SMT form factor
  • LCC package
  • Max. 127Kbps downlink / 158.5Kbps uplink
  • Extended temperature range of -40°C to +85°C

Key Features

  • Ultra-low power consumption
  • Ultra-low cost
  • Built-in eSIM reserved
  • Wide power supply range: 2.2–4.3 V
  • Compatible with Quectel GSM/GPRS M66 and NB-IoT BC66 modules for easy upgrades.
