BG77xA-GL Cat M1/NB1/NB2 series

Overview

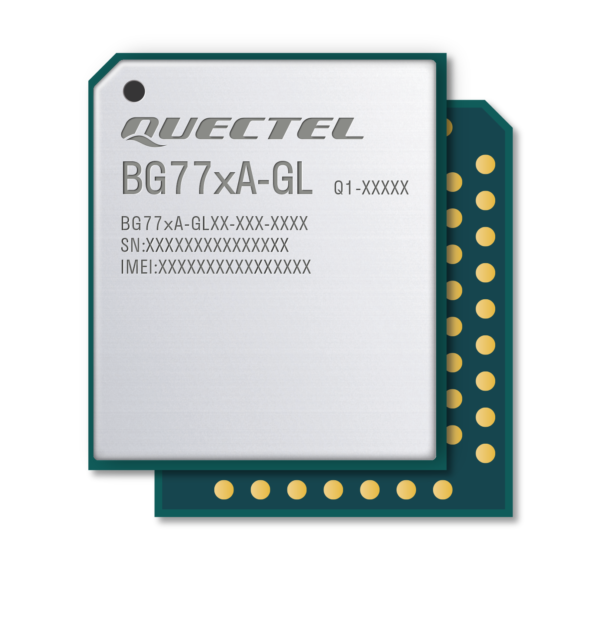

The BG77xA-GL is a series of LPWA modules with an SMT form factor of 14.9mm × 12.9mm × 1.9mm and integrated GNSS engine, which supports LTE Cat M1 and LTE Cat NB1/NB2 bands. The module is fully compliant with the 3GPP Rel-14 specification and provides global carrier band combinations. It features the MIPS 5150 processor and ultra-low power consumption by leveraging the integrated RAM and flash to achieve extremely low current consumption in various standby/hibernation modes, including 3GPP PSM and e-I-DRX. In addition, the BG77xA-GL contains a GNSS and cellular-based location engine that supports GPS and GLONASS.

The BG77xA-GL boasts a comprehensive hardware based security feature - Integrated Security Elements (ISE). The ultra-compact form factor and high integration level of the module enables integrators and developers to easily design their applications and take advantage of low-power consumption and mechanical intensity. The BG77xA-GL’s advanced LGA package allows for fully automated manufacturing required for high-volume applications.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities extend the applicability of the module to a wide range of IoT applications, such as wireless POS, smart metering, tracking, wearable devices, and many more.

SUMMARY

• Cat M1/NB1/NB2 module
• 14.9mm × 12.9mm × 1.9mm
• Max. 588Kbps DL / 1119Kbps UL
• Extended temperature of -40°C to +85°C

Key Features

• Integrated RAM and flash
• Embedded with abundant Internet service protocols
• Support for VoLTE* (Cat M1 only), QuecLocator®, and DFOTA
• Rich set of external, multi-band interfaces that ensure convenient applications
• Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design in time and development efforts
• Robust mounting and interfaces
