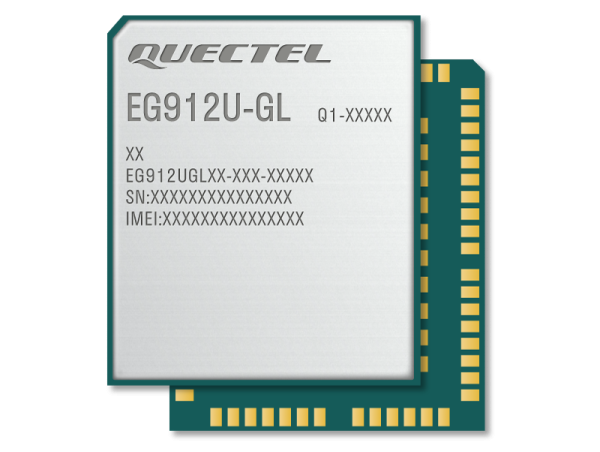

EG912U-GL

Overview

Quectel EG912U-GL is the latest LTE Cat 1 module optimized specially for M2M and IoT applications. It delivers maximum data rates up to 10 Mbps downlink and 5 Mbps uplink. Designed in the compact and unified form factor, EG912U-GL is compatible with Quectel multi-mode BG95 series, BG96, EG91 series, EG95 series and EG915U series modules, ensuring that it can easily migrate between 2G and 4G network to meet the needs of different industry applications.

EG912U-GL covers the frequency bands of different countries and regions. Through laser engraving, EG912U-GL features a neat appearance, wear resistant and durable label and improved heat dissipation, which makes it ideal for automation.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7/ 8/ 8.1/ 10/ 11, Linux and Android) extend the implementability of the module to a wide range of M2M and IoT applications such as POS, PoC, ETC, shared equipment, data card, energy control and monitoring, security and protection, and industrial PDA.

SUMMARY

• LTE Cat 1 module
• LGA form factor
• 29.0mm × 25.0mm × 2.4mm
• 3.67g
• Max. data rates of 10Mbps DL / 5Mbps UL
• Extended temperature range of -40°C to +85°C

Key Features

• LTE Cat 1 module optimized for M2M and IoT applications
• Worldwide LTE and GSM/GPRS coverage
• Abundant functional interfaces
• Analog audio
• Bluetooth (optional)
• GNSS (optional)
• DFOTA
• Wi-Fi Scan (optional)
